RESOLUTION
|
1920 X 1080 (FHD)
|
|
OSD
LANGUAGE
|
English / Korean
|
|
CHIPSET
|
RTD2841ASM
|
|
POWER
|
AC
Input Requiremen
|
AC90～264V
50/60HZ
|
|
VIDEO
INPUT
|
ATV
|
VIDEO
SYSTEM
|
PAL/NTSC
|
|
SOUND
SYSTEM
|
MN
|
|
RECEIVE
CHANNEL
|
ATV:200
|
|
ATSC
|
MODULATION
|
Air:8-VSB;Cable:64QAM,256QAM
|
|
VIDEO
SYSTEM
|
MPEG-2
MP@ML
|
|
AUDIO
SYSTEM
|
AC-3,MPEG1/2
LayerⅠand Ⅱ
|
|
RECEIVE
CHANNEL
|
Air:2-69;Cable:1-135
|
|
CVBS
|
1.0Vp-p
+/-5%
|
|
YPbPr/YCbCr
|
480i、480p、576i、576p、720p、1080i、1080p
|
|
PC-RGB
|
Format
|
Up
to 1920*1080@60HZ
|
|
HDMI
|
480i、480p、576i、576p、720p、1080i、1080p
|
|
AUDIO
INPUT
|
Audio
System
|
DD/DD+(Option
& need license)
|
|
AV
Audio Input
|
2
RCA terminal white color，red
color
|
|
EXPANSION
FUNCTION
|
USB/HDMI
|
YES
|
|
KEY
FUNCTIONS
|
C-,C+,M,V-,V+,
S, P
|
|
AUDIO
OUTPUT
|
2*5W@8Ω
|
|
COMB
FILTER
|
3D
|
|
DE-INTERLACE
|
3D
|
|
WEAK
SIGNAL ENHANCEMENT
|
YES
|
|
NOISE
REDUCTION
|
3D
|
|
EPG
|
YES
|
|

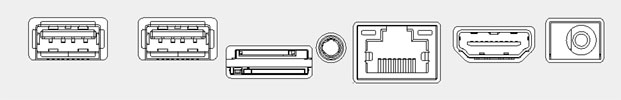

Terminal
(input)
|
TV
|
1×
F type 75 Ω for ATSC
|
|
HDMI
|
2×HDMI
terminal,HDMI 1 with ARC
|
|
USB
|
2×USB2.0
|
|
PC-RGB
|
1
D-USB 15PIN terminal,blue color
|
|
AV
|
RCA
terminal ,yellow white red color
|
|
MINI
AV
|
Mini@3.5MM
black type socket
|
|
YPbPr
|
Mini@3.5MM
black type socket
|
|
RJ45
|
1
RJ45 terminal
|
|
Terminal
(output)
|
SPDIF
|
Optical
fiber or Coaxial terminal
|
|
Earphone
|
1
Earphone terminal black color
|
|
* 대략적인 사양과 관련하여 상담/문의 하시겠습니까 ?
|
 |
|
