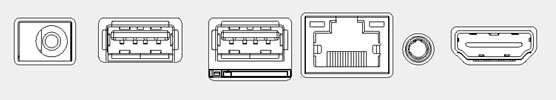

Function&Interface
|
Detailed
Description
|
|
CPU
|
RK3288
Cortex-A17 quad-core, up to 1.8GHz
|
|
DDR
|
LPDDR-III
2GB (4GB optional)
|
|
STORAGE
|
The
default comes with an 16GB EMMC NAND chip that can scale up to
128GB
|
|
LVDS
|
30-pin
industry-standard dual LVDS supporting VESA/JEITA format up to
1080P output
|
|
eDP
|
30-Pin
FPC EDP display port supporting up to 1920x1200
|
|
HDMI
OUTPUT
|
HDMI
2.0 standard display interface supports up to 4K output
|
|
MIPI-DSI
Output
|
31-Pin
common MIPI DSI interface for extended MIPI panel sub-board
|
|
HP/MIC
|
Support
CTIA 4-pole HP/Mic socket (Left-Right-GND-Mic)
|
|
LINE
OUTPUT
|
Support
standard left and right channel line output (pin header)
|
|
Amplifier
output
|
8
Ohm 6W Dual Audio Amplifier Output
|
|
MIC
INPUT
|
Differential
MIC input (pin header)
|
|
USB
2.0 Interface
|
2
horizontal connectors (Single Socket，one
is for OTG), 7 pin headers (one is CPU original USB)
|
|
Serial
Port
|
4
TTL/RS-232 compatible
|
|
Micro
SD Card
|
Self-elastic
micro SD card socket, up to 128GB capacity
|
|
Camera
|
Support
USB camera within 2 million pixels
|
|
WiFi
|
Built-in
high performance SDIO interface WiFi module, support IEEE 802.11
b/g/n
|
|
Bluetooth
|
Built-in
high performance UART interface BT module (optional) with support
for V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
|
|
Ethernet
|
10/100M
Adaptive Ethernet RJ45 connector
|
|
Backlight
Control
|
Industry
standard LCD backlight control header, support for backlight
switch and brightness adjustment
|
|
Infrared
RC
|
Standard
infrared remote control receiver and infrared receiver pin header
|
|
GPIO
signals
|
5-way
GPIO signals for such as GPIO buttons and/or 3.3V digital
input/output
|
|
I2C
BUS
|
I2C
pin header for I2C capacitive screen and etc
|
|
Real
Time Clock
|
Ultra-low-power
RTC circuit (CR1220 battery) with timer and alarm functionalities
|
|
LED
Indicator
|
Green
LED indicator for running
|
|
Buttons
|
Recovery
mode button and power switch button
|
|
PW/Reset
|
One-key
power switch and reset pin header
|
|
DC
Input
|
Supports
9~15V wide voltage DC power input
|
|
Ambient
Requirement
|
Working
temperature 0°~70°, working humidity 0%~95% (non-condensing)
|
|
Android
Version
|
Support
Android 5.1/6.0/7.1/8.1, Recommended Android 7.1
|
Mainboard is based on Rockchip RK3288 high-performance application processor platform. RK3288 SOC chip integrates Cortex-A17 quad-core and Mali-T764 quad-core GPU, clocked at up to 1.6GHz, with superior computing performance, 2D/3D graphics processing capabilities and Full HD video codec capabilities.
It perfectly supports 4Kx2K@60fps decoding and 4Kx2K HDMI output.

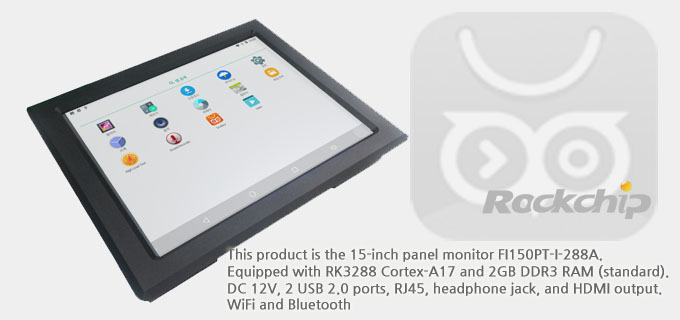

This mainboard is specially designed for ultra-thin applications with strict material selection and design. The compact size and rich interface facilitate its integration into the complete machine, bringing a smooth experience and superior performance to the final product. It can be applied to digital signage, touch interactive, consumer electronics, entertainment systems and other industries.
